Model NO.	ASH20
Weight	4.5-5KGS/METER
Wood Moisture	12% +/- 4% at Delivery

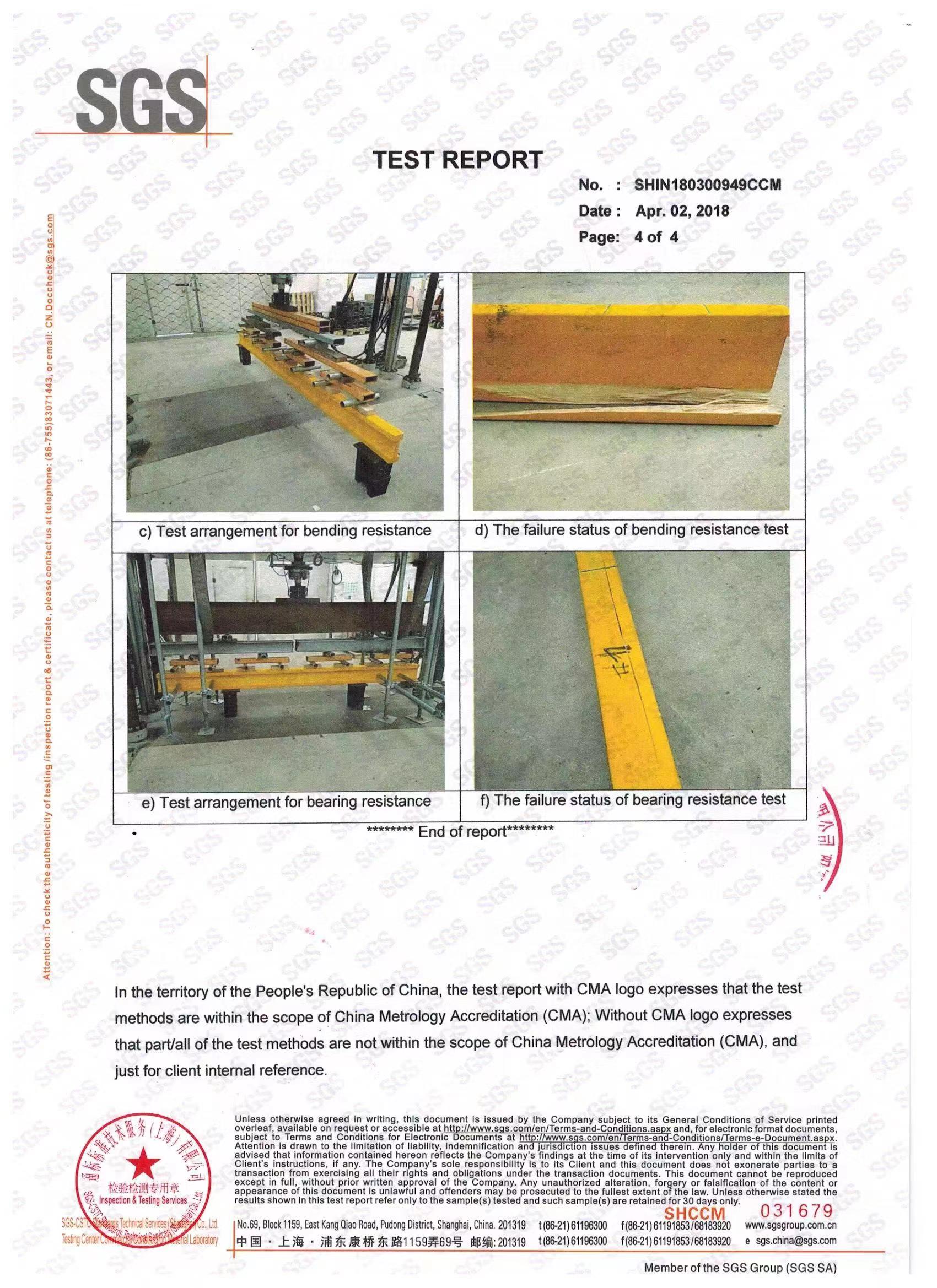

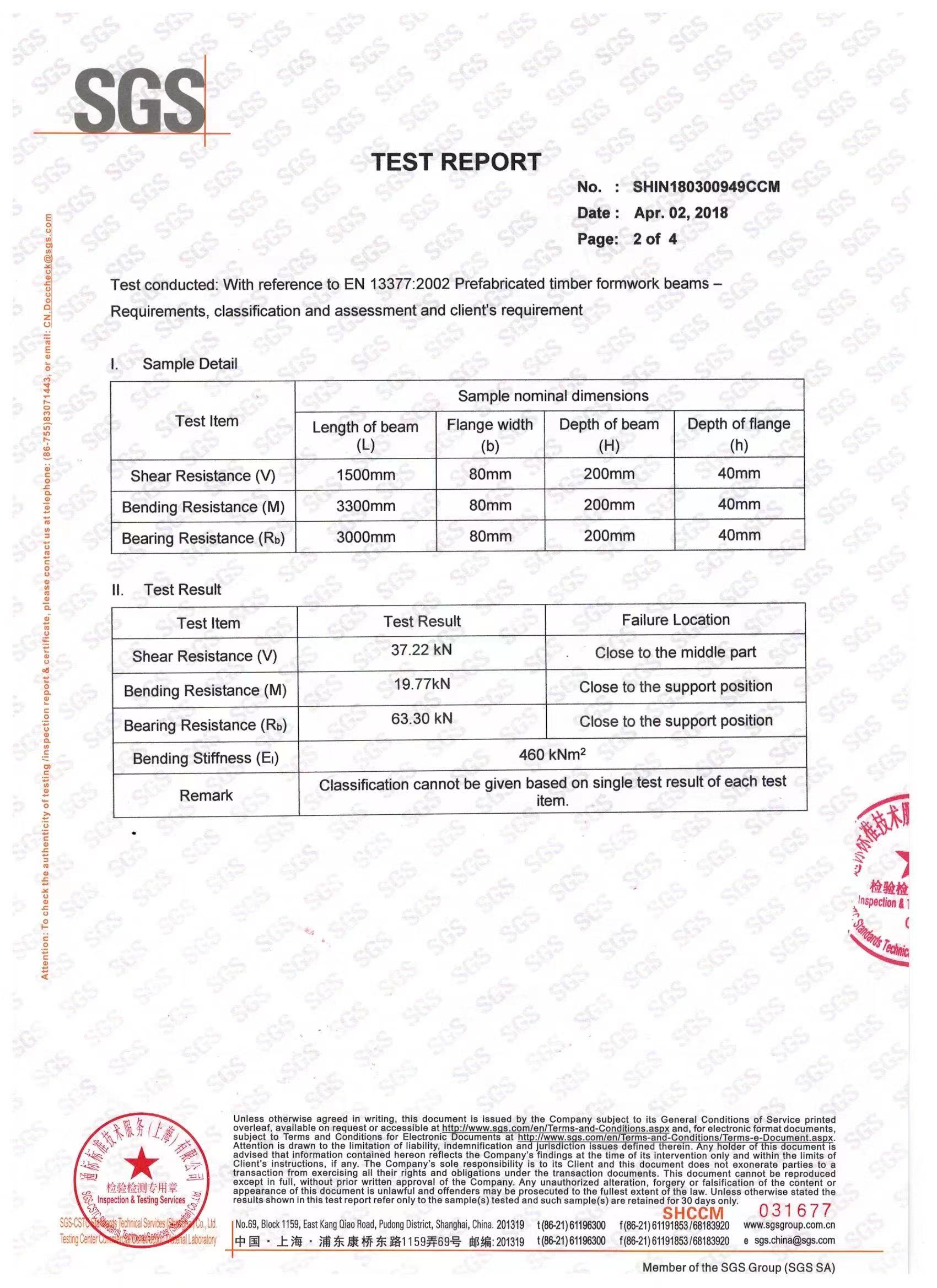

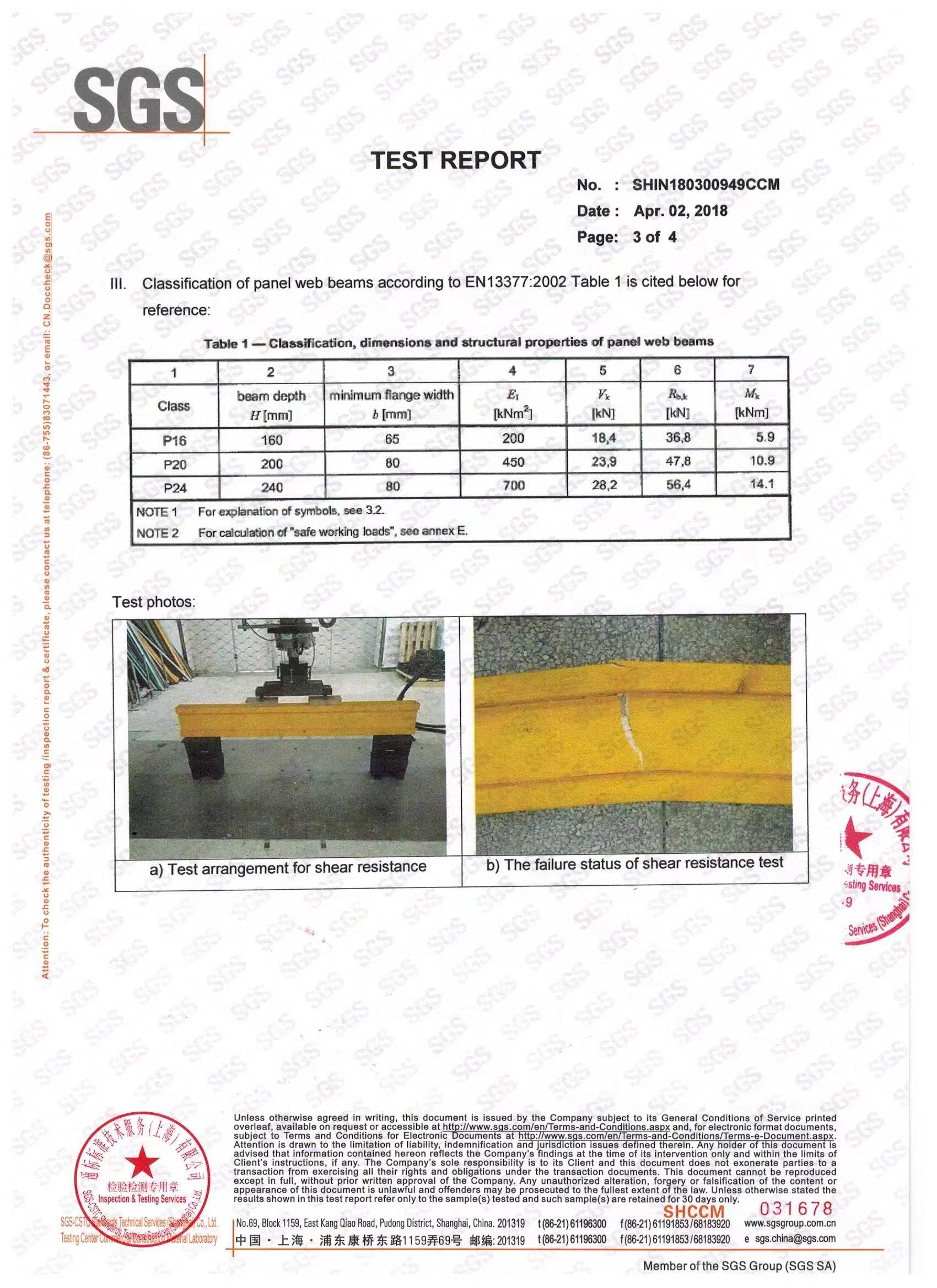

Shear Resistance	37.22 KN
Bending Resistance	19.77 KN
Bearing Resistance	63.30KN
Min. Order	2000 meters
Transport Package	by plywood pallet
Specification	H20/H16/H24
Trademark	aisenycs
Origin	China
HS Code	441123300

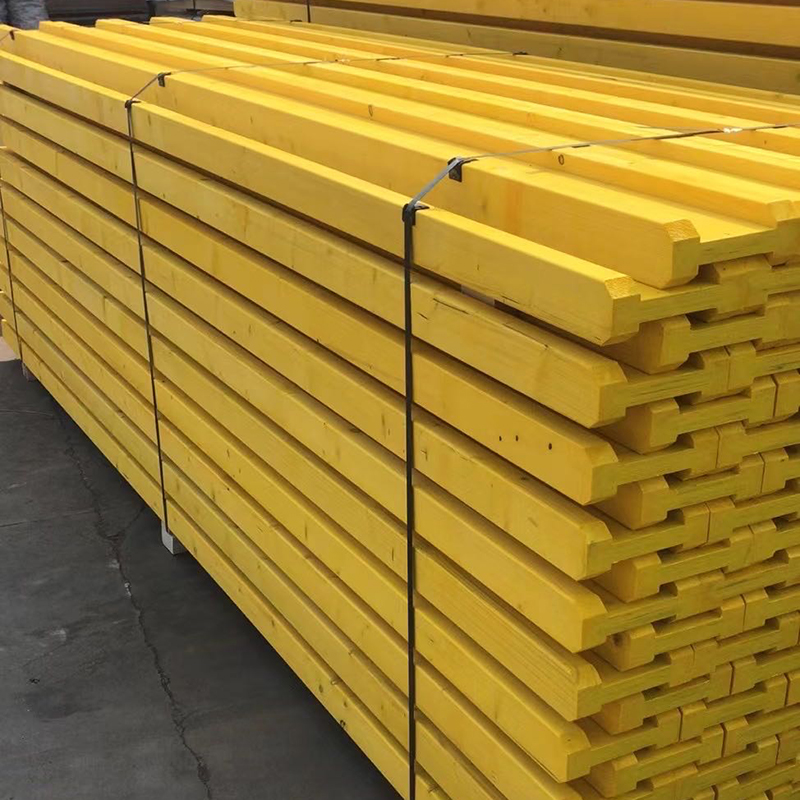

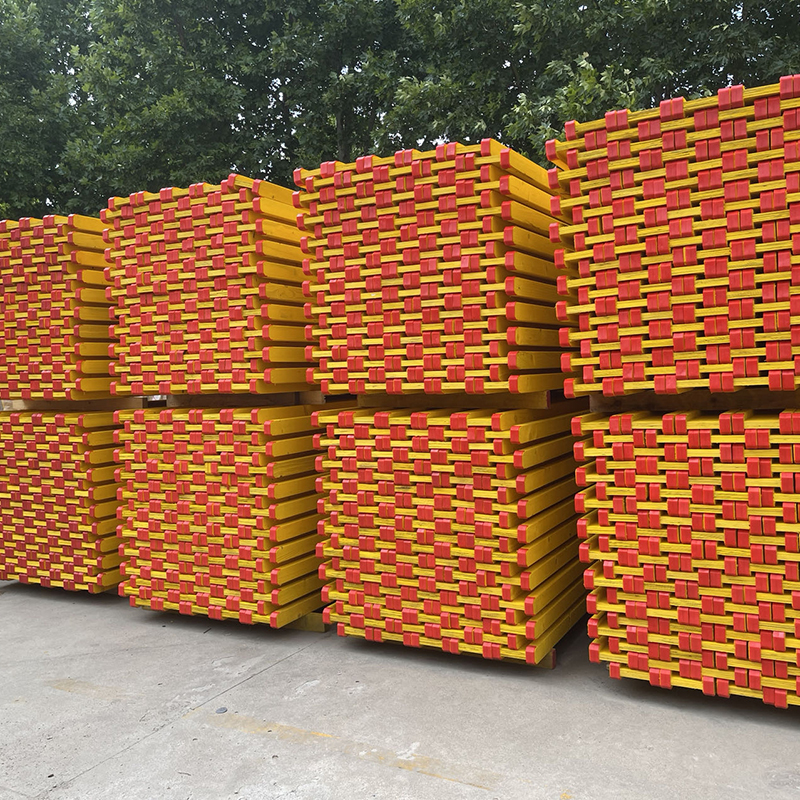

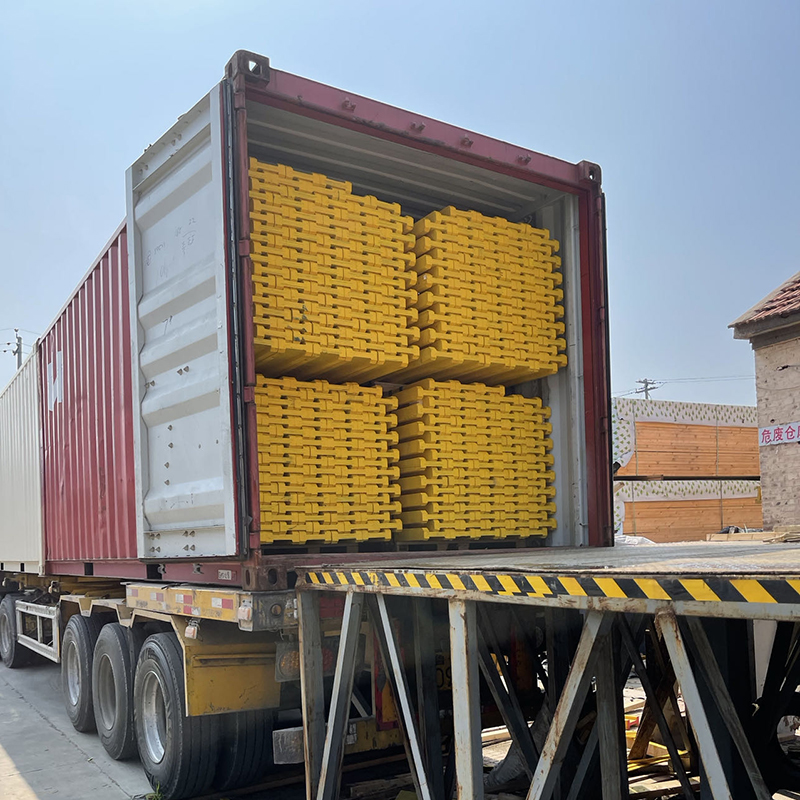

* Flange is made from Radiate pine LVL , poplar LVL, Finger-jointed into the web * Web is made from poplar core plywood with Melamine WBP glue * Two ends of each beam can be sealed with protective caps to protect them from moisture, reduce damage and increase service life * Yellow water proof painting * Monitoring as per EN13377 standard * Size: Flange 40*80mm, web 27mm thick, height 200mm * Glue:WBP1.5, 1.9, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 etc. or customized * With high standardization, universal property, fast operation. * High stiffness, light weight, strong load-carrying capability. * Low cost, recycle resource.Timber beam is an important part of formwork system, and has a very wide range of application in engineering. End-to-end-joint According to the need, standard holes can be drilled in the two ends of timber beam. We can lengthen the timber beam by end-to-end join. According to customers' demand, we can produce timer beams with any length. Raw material is spruce wood improted from Fenland. For 20' feet container: maximum loading capacity is 2260m For 40HQ' (GP) feet container: maximum loading capacity is 4960mProduction CapWith more than 10 years of experience, we know exactly what you need; our business is built on working with customers together and striving to satisfy all their requirements.  Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
